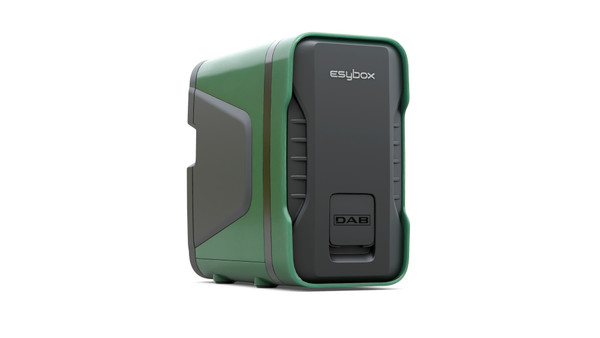

DAB ESYBOX POP

Product Overview

The DAB ESYBOX POP has just arrived in North America, and it's expected release date is November 2, 2026.

This EsyBox Pop electronic pressure boosting system is designed for small residential environments. It features sound-absorbing materials and a water-cooled permanent magnet motor, ensuring quiet operation, which makes it particularly suitable for home use.

3/4" NPT Connections

Electrical: 1x110-127 50/60 NEMA Plug

ESYBOX POP is a constant pressure, variable speed, on demand booster pump.

The professional performance of this device is ensured by its advanced components, which include:

Anti-cycling feature, which detects leaks by monitoring the frequency of starts and stops;
Automatic shut-off mechanism that activates in the event of dry running;
Anti-freeze system - to prevent ice formation in the hydraulic components, the pump activates when temperatures drop below 41°F;
Motor-protection technology to prevent issues from prolonged inactivity.

The adjustable connections facilitate quicker, easier, and more flexible installation. Integrated connectivity enables users to configure settings via a smartphone and access cloud services without the need for additional accessories. Additionally, the remote control uses H2D technology to view and manage comfort features and parameters.

PUMP DESIGN FEATURES
Sound-absorbing ABS protective casings. Technopolymer impellers. Non-return valve with integrated temperature, flow, and pressure sensors.

MOTOR DESIGN FEATURES
Permanent magnet motor cooled by the pumped liquid, encased in a stainless steel jacket for enhanced durability.

ELECTRONICS FEATURES
The inverter-controlled permanent magnet motor ensures significant energy savings. Its inverter feature not only enhances energy efficiency but also provides protection against water hammer. Integrated protections: dry running, excessive current, abnormal voltage, overheating, freezing, stalling, and anti-cycling. The device includes a guided procedure for online connection, enabling easy configuration and remote or local adjustment of all parameters through an app. Users can simplify the setpoint adjustment directly from the pump and view the current status, alarm history, and consumption data via the APP.

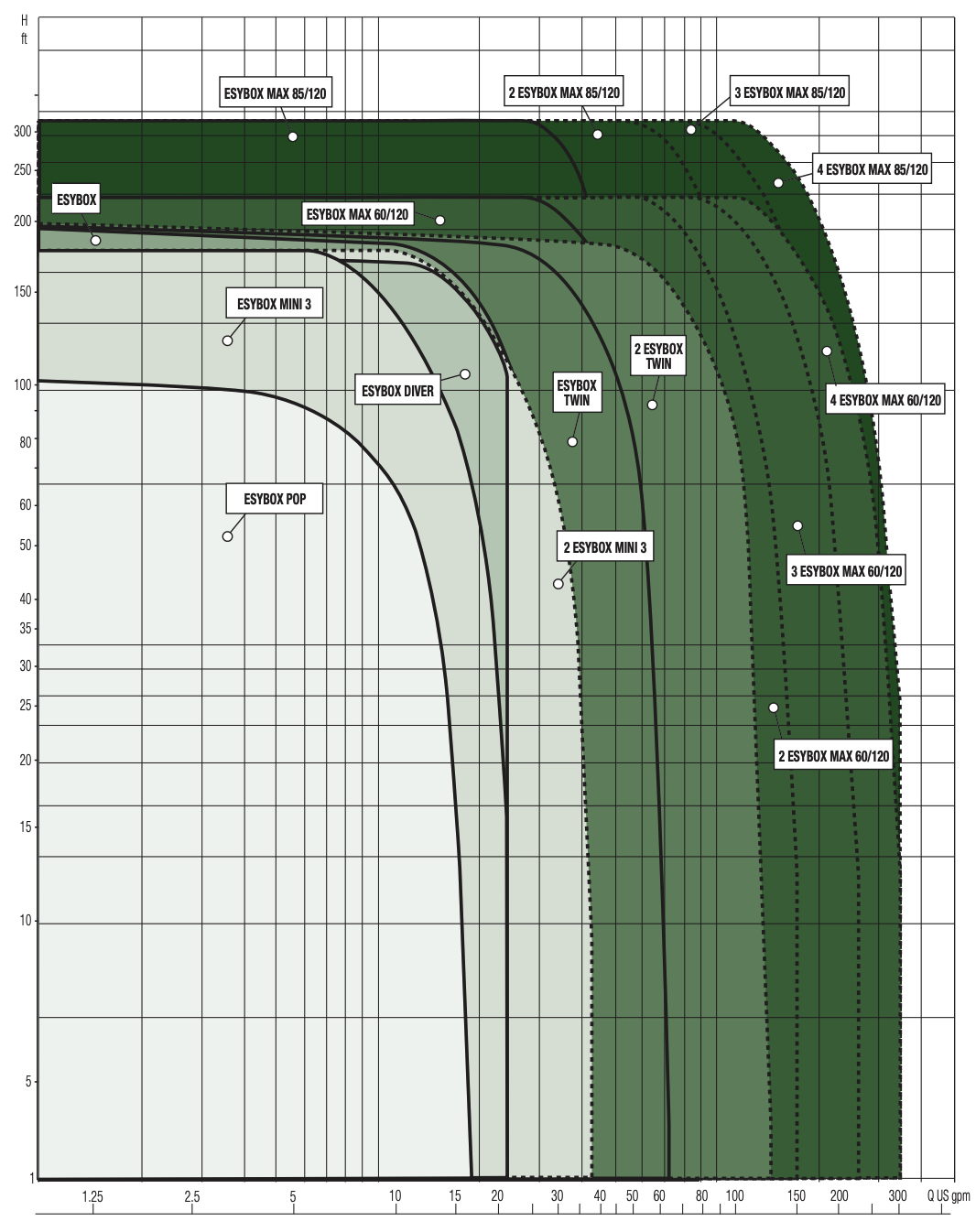

TECHNICAL DATA
Flow rate: up to 17.2 gpm
Head: 105 ft
Type of pumped liquid: clean, free of solids and abrasive substances, nonviscous, non-aggressive, non-crystallized, and chemically neutral
Liquid temperature range: 41°F to +122 °F
Maximum ambient temperature: +122 °F
Maximum working pressure: 87 psi Motor protection rating:
IPX5 Motor insulation class: F
Impeller material: technopolymer
Single-phase power supply: 1x110-127V
Power cord length: 4.92 ft
Installation options: can be installed vertically or wall-mounted using a dedicated accessory
Certifications: WRAS, ACS, NSF, CSA FOR FLOODED SUCTION ONLY – NOT SELF-PRIMING
