Grundfos PM Plus Pressure Manager (110V / 220V)

$307.00
SKU:
93264958
Weight:
2.00 LBS
Shipping:
$20.00 (Fixed Shipping Cost)
Rank:
Professional, Standard

Expected release date is 10/23/25

Adding to cart… The item has been added

Product Overview

Note: Fixed Shipping Rate doesn't apply to Hawaii, Alaska or Puerto Rico.

The Grundfos PM Plus is a controller that allows your pump to operate "on demand". On demand essentially means that when there is a drop in pressure in the water line, the PM Plus will send a signal to the pump to turn on and begin pushing water. The pressure drops until it reaches 20 PSI to 32 PSI (1.5 or 2.2 bar), then starts the pump. The pump will continue to run until the demand for water stops. E.g. A valve is closed, and the flow of water ends. At this point, the PM Plus will send a signal to turn off the pump.

The Grundfos PM Plus pressure manager is designed for automatic start/stop control of Grundfos pumps and other water supply pumps. The PM Plus is the all-round control solution offering adjustable start from 21-43 PSI. This enables customization to different types of installations at the desired comfort level. The start pressure is set by means of DIP switches located behind the control panel, whereas the current pressure is indicated on the LED display on the front of the PM Plus. The PM Plus starts the pump when the start pressure is reached, and the pump keeps running as long as there is a flow. The PM Plus can be optimized for operation with an external expansion tank, reducing the number of times the pump starts/stops, extending the life of the pump.

Grundfos PM PLUS

Optimized home water pressure

The Grundfos all-in-one PM PLUS pressure manager works with domestic water supply pumps from Grundfos or any brand, automatically starting the system pump at a preset pressure point and continuing for as long as the water flows.

It ensures optimal water pressure wherever and whenever it’s needed around the home, solving issues such as fluctuating or insufficient water pressure. Easy to install and safe to run, the PM PLUS includes such features as dry-running protection.

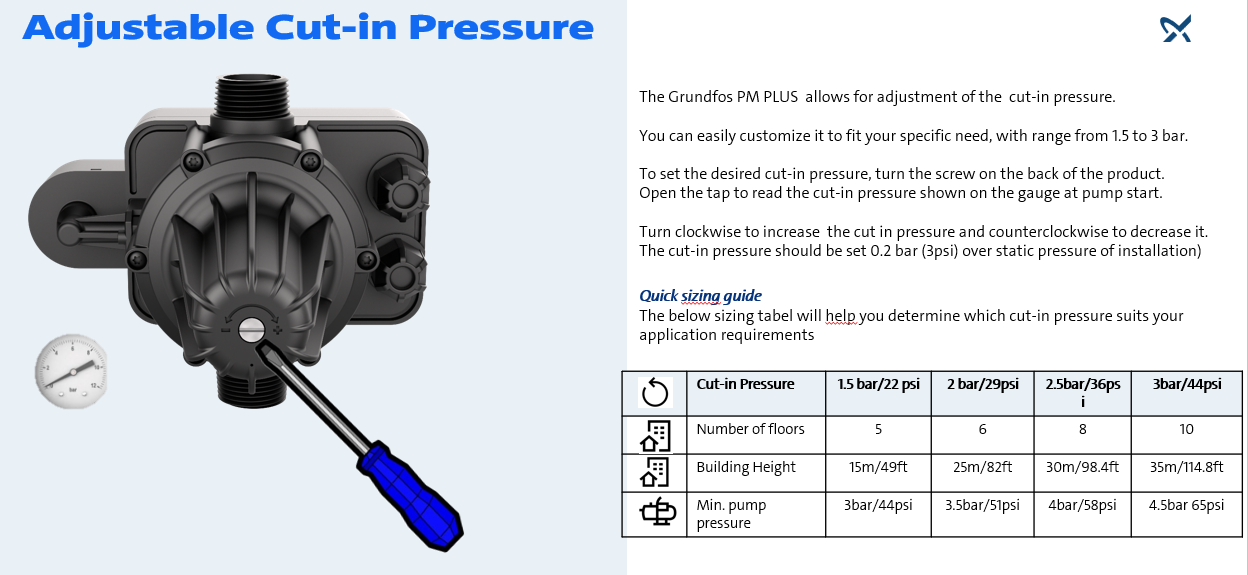

Adjustable start pressure

When you connect PM PLUS with your water supply pump, it will start the pump at your preferred cut-in pressure level – from 21 - 43 PSI. It then keeps the pump running as long as there is a sufficient flow of water.

For water supply or rainwater systems in:

• Single-family houses
• Blocks of flats
• Summer houses and holiday cottages
• Horticulture and gardening
• Agriculture

Dual Voltage Power: 110V/220V

Features and benefits

  • User-friendly interface
  • Free choice of installation position
  • Flexible power supply
  • Internal pressure tank
  • Power-on indication
  • Pump running indication
  • Alarm indication

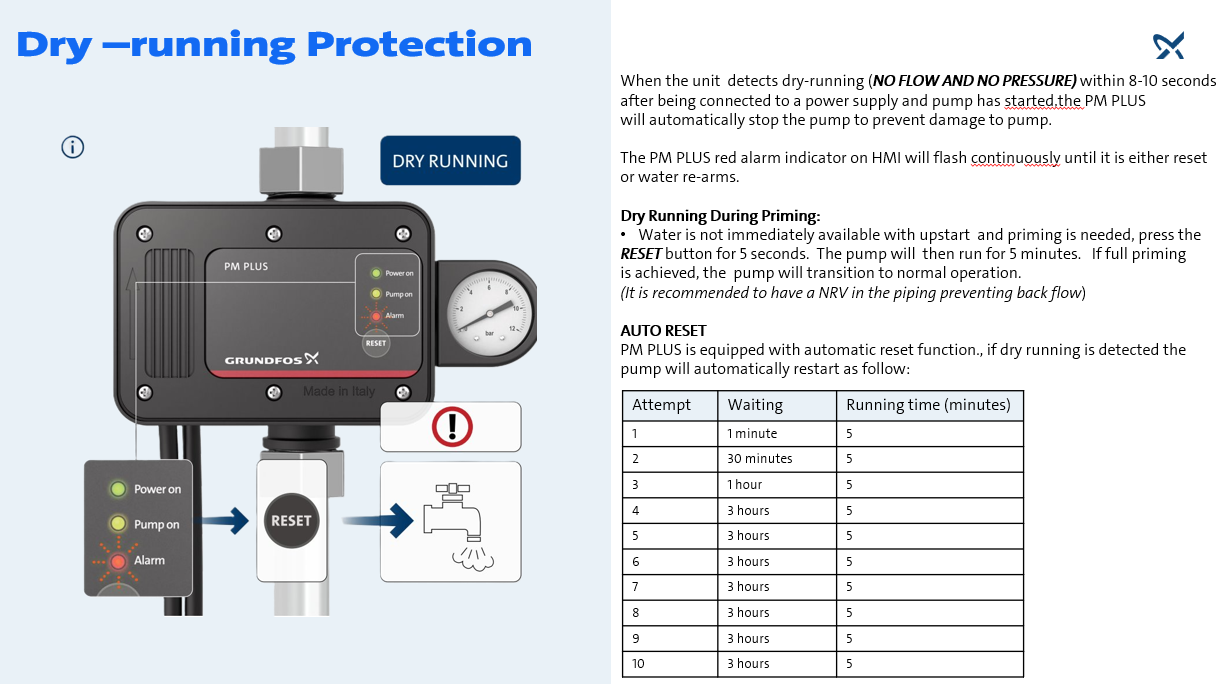

  • Dry-running protection

Documentation:

Quick Start Guide
Data Sheet
Operating Instructions
Quick-Sizing

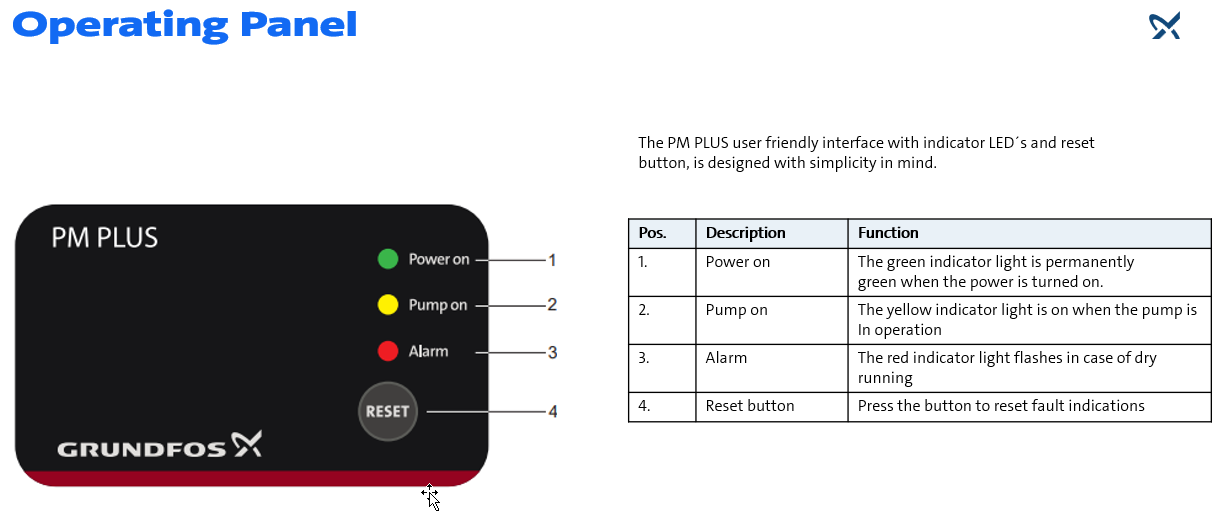

grundfos-pm-plus-interface





Product name: PM PLUS
Product No: 93264958
EAN number: 5715470048593

Technical

Approvals: CE,cULus
Return valve: YES
Adjustable start pressure: Yes
Start pressure: 21 PSI - 43 PSI

Installation

Range of ambient temperature: 0 .. 50 °C
Maximum operating pressure: 174 PSI
Type of connection: MNPT
Size of connection: 1"

Liquid

Pumped liquid: Water
Liquid temperature range: 0 .. 140 °F

Electrical data

Max. P1
1500 W
Mains frequency: 50 / 60 Hz
Rated voltage: 1 x 110-240 V
Rated current: 10 A
Enclosure class (IEC 34-5): IP65
Power plug: No plug

Controls

Type of connector: No plug
Dry running protection: Flow valve

Others

Net weight: 2.49 lbs
Gross weight: 3.04 lbs
Fits to the following Grundfos product(s): CM, JP (Will also work with other pumps, as long as the rated amps do not exceed 10A)
Environmental approvals: WEEE

PM PLUS is a pressure manager designed for automatic start/stop control of Grundfos or other pumps for water supply in domestic applications.



Warranty Information

2 years from manufacturer
