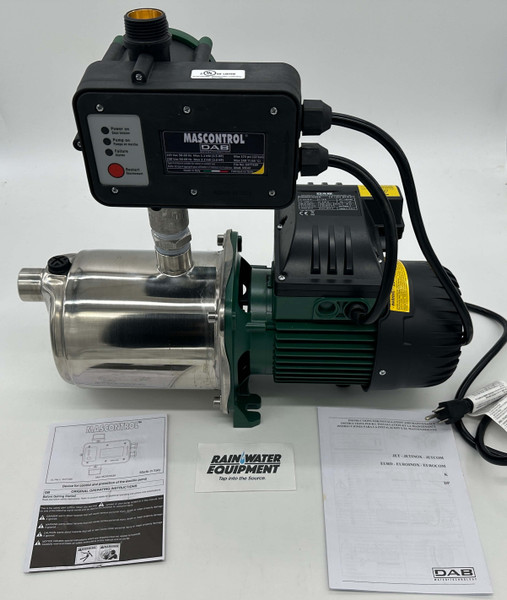

DAB EUROINOX 40/506 On Demand Booster Pump - 1.1 HP

DAB EUROINOX Multistage horizontal centrifugal pump, featuring extremely silent running suitable for domestic use for water supply and pressurization, irrigation of gardens and vegetable gardens, and moving water in general. Euroinox: stainless steel pump body. Motor support in die-cast aluminum, seal holder in AISI 304 steel. Mechanical seal in carbon/ceramic. Rotor shaft in AISI 304 steel. Rotors, diffuser bodies and diffusers in technopolymer. Adjustment rings in stainless steel

MASCONTROL - An intelligent system: Mascontrol is the innovative product providing optimum control for electric pumps used in residential and commercial well, water conditioning irrigation and booster systems. An intelligent mix of hydraulic and electronic engineering,Mascontrol monitors both pressure and flow and automatically controls pump operations. Mascontrol eliminates the use of large expansion tanks needed with traditional systems. No plenum chambers to recharge, and no irritating variations in pressure and flow at the point of use. Mascontrol also provides complete run-dry pump protection. No adjustment or maintenance is required. Much more compact than traditional tank systems, Mascontrol is absolutely dependable, durable and simple to install. Over four million units currently in use world-wide.

FEATURES

• EUROINOX

• Multistage centrifugal electric pump
• Pump body in stainless steel
• Self-priming up to 6 mm
• Built-in capacitor and single-phase version complete with thermal and current overload protection
• 1.1 HP
• Built-in Dry Run Protection
• A small (2-4 gallon) Pressure Tank is recommended to extend the pump's life
• MASCONTROL (Part#: 109640410 1 inch 32psi)

• Built-in run-dry protection
• Dual voltage 115 V or 230 V
• Absorbs water hammer
• Eliminates pressure tank and switch
• Built-in check valve
• Maintains constant pressure at constant flow
• Simple installation saves time and space
• No adjustment or maintenance required
• Can be used with surface or submersible pumps

BENEFITS

• EUROINOX
• The special design make these pumps exceptionally silent-running.
• High pressures of up to 8 bar can be reached.
• Optimal motor cooling
• Silent running
• Reliable
• Optimal hydraulic performance
• MASCONTROL
• Mascontrol includes a hydraulic section and electronic control box.
• The hydraulic section comprises:
• a moulded housing in reinforced plastic.
• a diaphragm and spring responsive to variations in pressure.
• a valve responsive to variations in flow.
• a check valve.
• a relay with special contacts and an electrical life of over 300,000 cycles or approximately 10 years (continuous rating).
• The electronic section comprises:
• a NEMA 12 electronic box molded in self-extinguishing plastic
• a varistor protecting against voltage peaks.
• zero - crossing electrical tecnology.

Applications include:

• Domestic Water pressurization
• Water pressurization for irrigation systems
• pressurization of sprinklers & sprinkler systems

EUROINOX Range Performance:

EUROINOX 50:

TECHNICAL DATA

• EUROINOX

• Operating Range: From 1 to 32gpm (0.6 to 7.2 m3/h) with a head up to 236ft ( 72 m) 102 psi
• Liquid quality requirements: clean, free from solids or abrasive substances, non-viscous, non-aggressive, non-crystallized, chemically neutral, close to the characteristics of water
• Liquid temperature Range:
• from 32°F to +95°F (0°C to +35°C )for domestic use
• from 32 F to +104 F (0°C to +40°C )for other uses
• Maximum Suction depth: 26 ft (8 m)
• Maximum ambient temp. 104°F (+40°C )
• Maximum operating pressure: 116 psi (8 bar)
• Installation: fixed or portable in a horizontal position
• Special version: on request other voltages and/or frequencies
• Power Supply:  115v / 230v 60Hz Dual Voltage
• MASCONTROL

• Operating Range: From 2 to 52 gpm
• Liquid quality requirements: clean, free from solids or abrasive substances, non-viscous, non-aggressive, non-crystallized, chemically neutral, close to the characteristics of water
• Liquid temperature Range: From 32°F to 149°F
• Maximum ambient temp. 104°F
• Maximum operating pressure: 145 psi (1000 kPa)
• Installation: fixed in a Vertical position
• Power supply : 115/230v Dual Voltage 50/60Hz
• Amp Full Load: 115V-16FLA / 230V-20FLA
• Enclosure: NEMA12

Documentation:

• EUROINOX Data Sheet
• EUROINOX Instructions
• MASControl Installation Instructions
• MASContral Technical Sheet
